Output

char *diverge_model_to_file(diverge_model_t *mod, const char *fname)

output a diverge_model_t to a .dvg file that can be read using the diverge.output python library (see Simulation Output). more control can be obtained using diverge_model_to_file_finegrained() using the configuration structure diverge_model_output_conf_t. The defaults for this struct are given in diverge_model_output_conf_defaults (only accessible from C due to class/struct ditochtomy in C++), or diverge_model_output_conf_defaults_CPP(). functions return a checksum of the model as a string (must not be free’d as it is statically owned by libdivERGe)

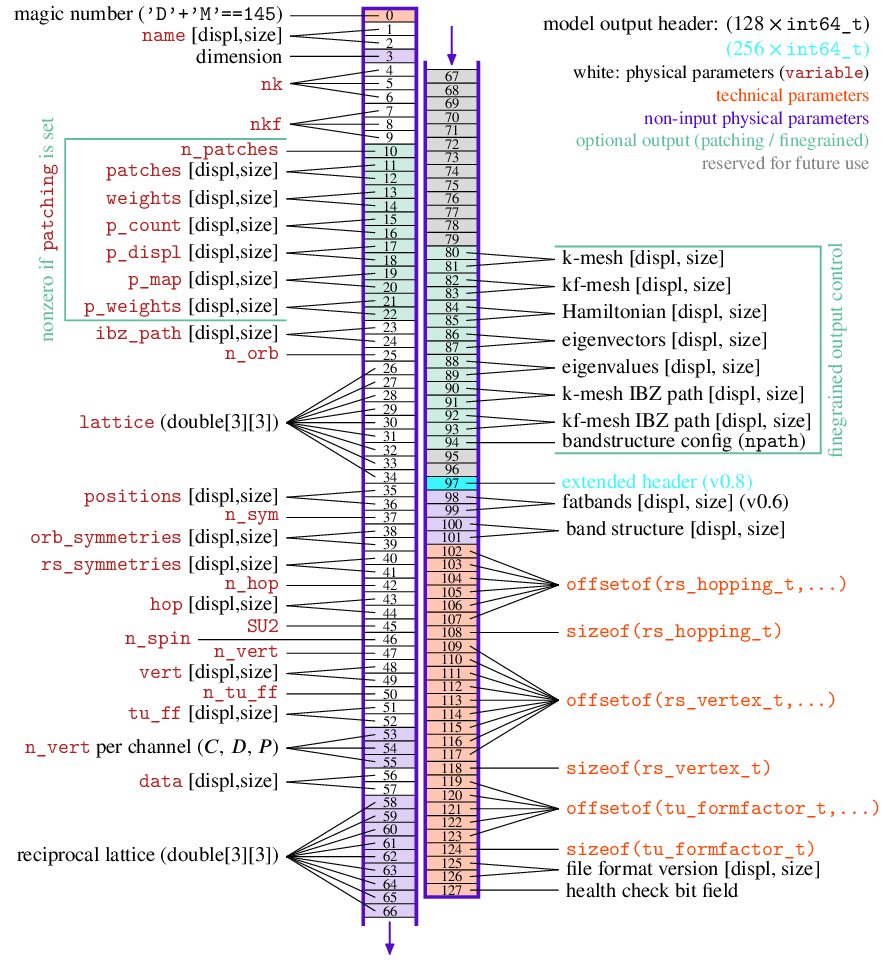

file format specification info graphic (text below)

header is 128 elements of type index_t (64 bit signed integers)

all displacement/length information is in bytes

header[0]:

DIVERGE_MODEL_MAGIC_NUMBER

header[125-126]:

file format version string [displ, size]. if both are zero, default to v0.4 for diverge.output.read().

header[1-2]:

name [displ, size]

header[3]:

dim

header[4-6]:

nk

header[7-9]:

nkf

header[10-22]:

0 if patching == NULL, else:

header[10]:

n_patches

header[11-12]:

patches [displ, size]

header[13-14]:

weights [displ, size]

header[15-16]:

p_count [displ, size]

header[17-18]:

p_displ [displ, size]

header[19-20]:

p_map [displ, size]

header[21-22]:

p_weights [displ, size]

header[23-24]:

ibz_path [displ, size]

header[25]:

n_orb

header[26-34]:

lattice [interpret as double[3][3]]

header[35-36]:

positions [displ, size]

header[37]:

n_sym

header[38-39]:

orb_symmetries [displ, size]

header[40-41]:

rs_symmetries [displ, size]

header[42]:

n_hop

header[43-44]:

hop [displ, size]

header[45]:

SU2

header[46]:

n_spin

header[47]:

n_vert

header[48-49]:

vert [displ, size]

header[50]:

n_tu_ff

header[51-52]:

tu_ff [displ, size]

header[53-55]:

n_vert_chan

header[56-57]:

data [displ, size]

header[58-66]:

reciprocal latttice [interpret as double[3][3]]

by default all the following are zero. They can be controlled via the finegrained function diverge_model_to_file_finegrained()

header[80-81]:

kmesh [displ, size]

header[82-83]:

kfmesh [displ, size]

header[84-85]:

ham [displ, size]

header[86-87]:

U [displ, size]

header[88-89]:

E [displ, size]

header[90-91]:

kmesh ibz_path [displ, size]

header[92-93]:

kfmesh ibz_path [displ, size]

Both the kmesh and kfmesh ibz_path can only be calculated if ibz_path is set. These two objects require a bit of internal structure to be read correctly: The memory layout is:

N:

(number of segments, index_t)

lengh_segment_0 … length_segment_N:

(index_t, N)

M:

(number of points, index_t)

index_point_0 … index_point_M:

(index_t, M)

point_0_[x,y,z] … point_M[x,y,z]:

(double, M, 3)

Note that [displ, size] accounts for the full displacement and size of the memory layout described above

header[97]:

nonzero if the actual header size is 256 * sizeof(int64_t). The extended header is currently unused, but this field is reserved for future extensions.

if ibz_path is set, else all the following are zero

header[98-99]:

fatbands [displ, size]

header[100-101]:

bandstructure [displ, size]

structure offest/size information, useful for python wrapping

header[102]:

offsetof(rs_hopping_t, R)

header[103]:

offsetof(rs_hopping_t, o1)

header[104]:

offsetof(rs_hopping_t, o2)

header[105]:

offsetof(rs_hopping_t, s1)

header[106]:

offsetof(rs_hopping_t, s2)

header[107]:

offsetof(rs_hopping_t, t)

header[108]:

sizeof(rs_hopping_t)

header[109]:

offsetof(rs_vertex_t, chan)

header[110]:

offsetof(rs_vertex_t, R)

header[111]:

offsetof(rs_vertex_t, o1)

header[112]:

offsetof(rs_vertex_t, o2)

header[113]:

offsetof(rs_vertex_t, s1)

header[114]:

offsetof(rs_vertex_t, s2)

header[115]:

offsetof(rs_vertex_t, s3)

header[116]:

offsetof(rs_vertex_t, s4)

header[117]:

offsetof(rs_vertex_t, V)

header[118]:

sizeof(rs_vertex_t)

header[119]:

offsetof(tu_formfactor_t, R[3])

header[120]:

offsetof(tu_formfactor_t, ofrom)

header[121]:

offsetof(tu_formfactor_t, oto)

header[122]:

offsetof(tu_formfactor_t, d)

header[123]:

offsetof(tu_formfactor_t, ffidx)

header[124]:

sizeof(tu_formfactor_t)

header[127]:

bit field (64bits) that is all zero when the numerical representations are correct. if not, errors are indicated in the following manner:

• the leftmost (first) bit is one when floats are not 32bit wide

• the second bit is one when doubles are not 64bit wide

• the third bit is one when integers (int and index_t) are not little endian

• the fourth bit is one when 1 byte (sizeof(char)) is not the same as 8 bit.

struct diverge_model_output_conf_t

to have fine-grained output control over diverge_model_to_file(). Used explicitly in diverge_model_to_file_finegrained(), and implicit in the python wrapper diverge.model_to_file_PY(). Defaults are not documented here, but can be obtained from C/C++/Python via diverge_model_output_conf_defaults_CPP() or from the static constant variable diverge_model_output_conf_defaults in C.

int kc

coarse kmesh

int kf

fine kmesh

int kc_ibz_path

include the indices on the coarse mesh that describe the ibz path. must have diverge_model_t.n_ibz_path > 0.

int kf_ibz_path

include the indices on the fine mesh that describe the ibz path. must have diverge_model_t.n_ibz_path > 0.

int H

Hamiltonian on fine mesh as array (k, orb, orb)

int U

Orbital to band matrices on fine mesh, ordered as (k, band, orb)

int E

energies on fine mesh; ordered as (k, band)

int npath

integer. use this as the number of points on the IBZ path (cf. diverge_model_output_set_npath()). Only used when nonzero; but then with precedence over what is/has been set in diverge_model_output_set_npath(). possible nonzero values: -1 (use eigenvalues on mesh), >=1 (explicitly calculate H from hoppings), <-1 (explcitly calculate H from hoppings in batched manner with this many pts). If INT_MIN skip the band structure output.

int fatbands

if (diverge_model_output_conf_t.npath == -1 && diverge_model_t.n_ibz_path > 0 && common internals are set), output the absolute value of the orbital to band matrices; ordering is (k, orbital, band), which stands in contrast to the internal ordering of orbital-band matrices (cf. diverge_model_internals_get_U())!

static const diverge_model_output_conf_t diverge_model_output_conf_defaults

output configuration defaults, accessible from C, for values look at source

diverge_model_output_conf_t diverge_model_output_conf_defaults_CPP(void)

return the defaults of the diverge_model_output_conf_t structure from CPP/Python. For C you can use a plain, simple

diverge_model_output_conf_t outconf = diverge_model_output_conf_defaults;

char *diverge_model_to_file_finegrained(diverge_model_t *mod, const char *fname, const diverge_model_output_conf_t *cfg)

offers the same functionality as diverge_model_to_file() including fine-grained controls over all internal structures. Returns the md5sum of the written file as static string.

Parameters:

• mod (diverge_model_t) – model

• fname (const char*) – file name of the output

• cfg (const diverge_model_output_conf_t*) – pointer to config structure, can be NULL for defaults.

char *diverge_model_to_file_fg(diverge_model_t *mod, const char *fname, const diverge_model_output_conf_t *cfg)

alias for diverge_model_to_file_finegrained()

void diverge_model_output_set_npath(int npath)
